Installation and use method of remote control generator set

Release time:

2023-08-18 15:55

INSTALLATION ACCESSORIES LIST

1. One generator
• 2. One control box
3. One control line (standard 5 meters, please notify in advance for special length requirements)
3 power lines (self-provided, according to the current load selection, generator to control box, control box to commercial power, control box to load)
• 5.2 M8 expansion screws (self-contained, used to install the control box to the wall)

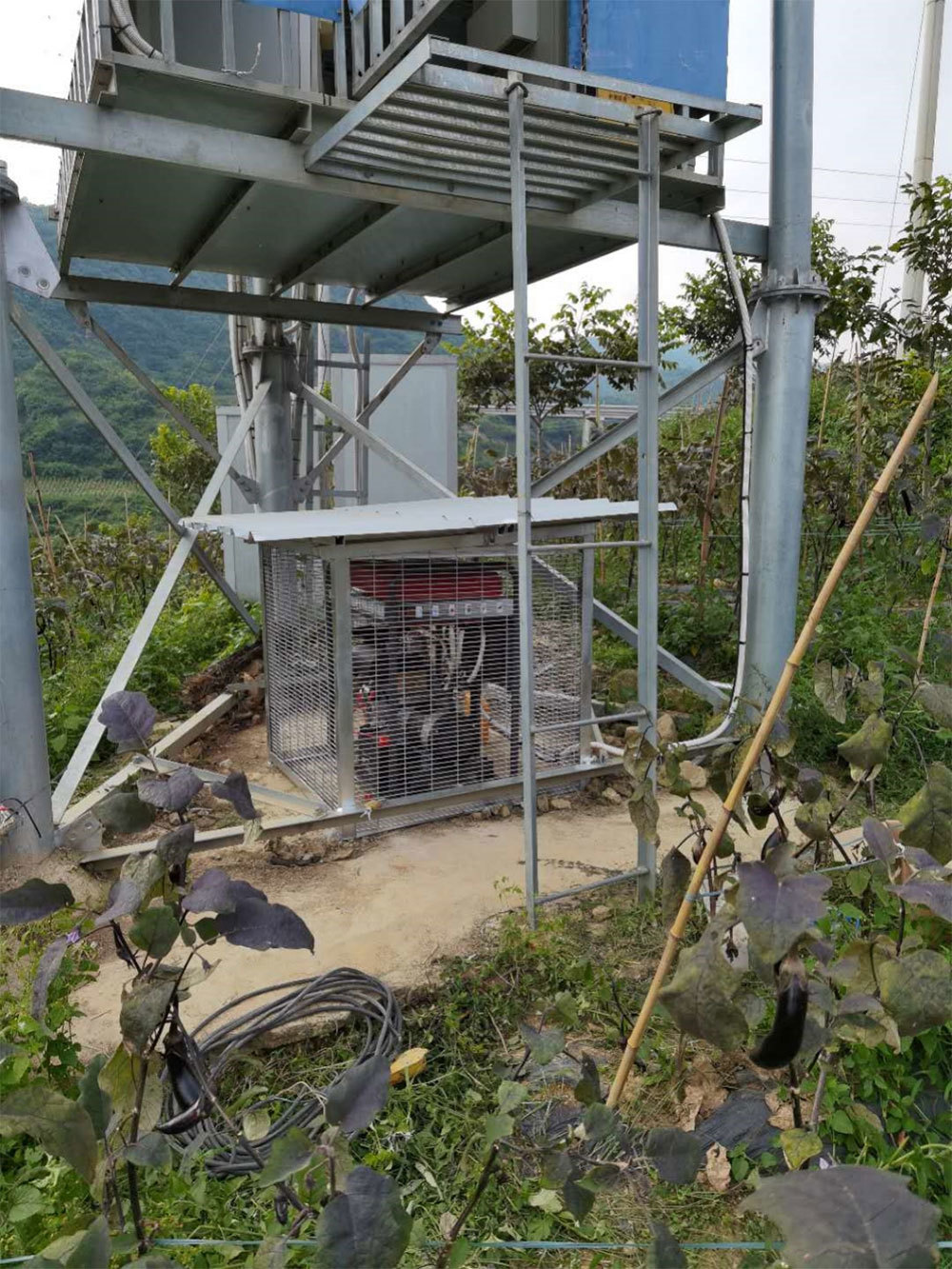

6. A ventilated simple oil machine room (self-provided, base station with oil machine room can be unprepared, oil machine room can be designed independently, in order to save materials can be one or both sides against the wall, easy to repair the oil machine must be taken out).

Installation Use

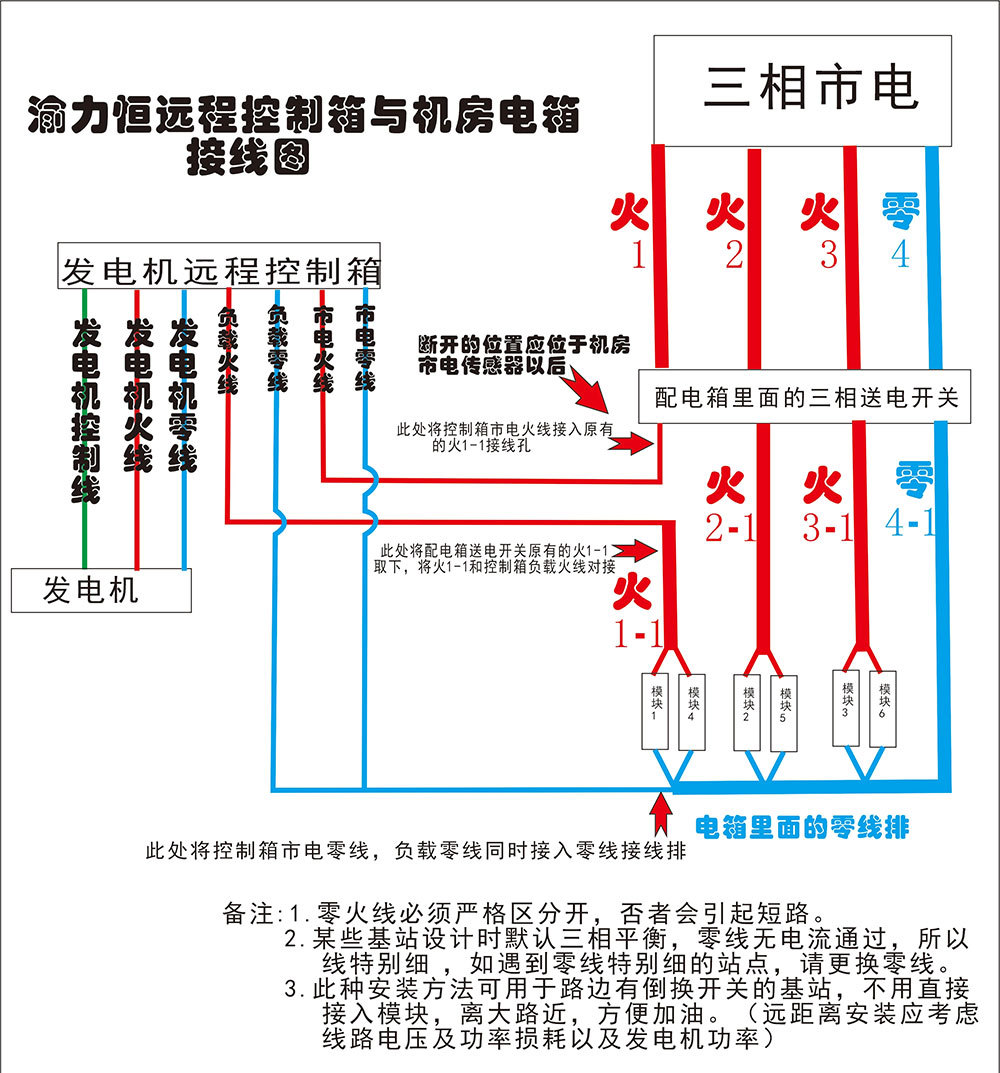

The installation method is shown in the figure, and this installation method can be used for single-phase and three-phase.

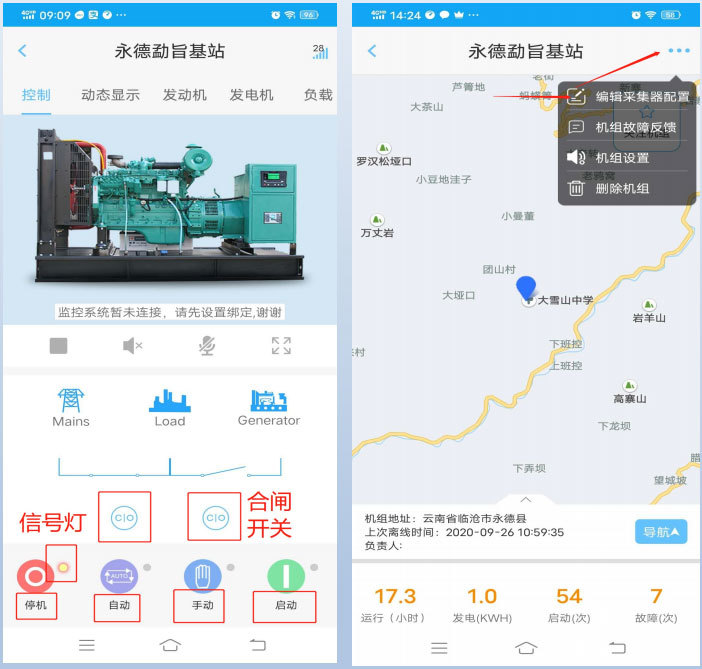

After connecting the lines of each part according to the drawings, test the machine to start, switch, stop, automatically, whether it is normal. (See app for details)
Click on the hidden menu to change the name, generally change the format to the provincial/city and county station name.
• Complete the installation.

Since the current base station oil machine is not intelligent, the oil machine power generation is managed by human, and the oil machine operation information depends on human feedback. In particular, high mountain stations and remote stations meet with rain, snow and hail every year. Due to the difficulty of supervision, the oil engine is not in place and the power generation is not timely. The base station is seriously retired and the indicator is declining. It is usually when the mains power is abnormal that we rush to generate electricity. Sometimes it is found that the oil machine cannot operate normally (oil machine failure, generator failure, battery failure, no oil in the oil tank, etc.).

Hardware advantages of remote control generator set control box

In order to cope with the harsh environment of high mountain remote base station mains, professional customized charger is adopted with voltage resistance grade of 300V

What are the components of a remote control generator set?

1. Electric starter generator. 2. Automatic control collector. 3. Wireless communication module. 4. Internet of Things card. 5. Background server. 6. Rectifier charger. 7 Current transformer. 8. Electronic damper controller. 9. Mobile phone end. 10. Control lines.

On the Transformation Scheme of Ordinary Electric Starting Oil Machine

Modification materials: 1. One ordinary electric starter generator (manual modification cost is too high, it is not recommended to change);2. One control box 3. Optimize one connection line (with integrated control box) 4. Gasoline version with damper stepper motor carburetor/diesel version solenoid valve oil pump. 5. One oil level meter

Installation and use method of remote control generator set

The oil lubrication added by the diesel pump is: SAE15W-40 or 20W-50 grade diesel engine oil. The diesel pump should use high-quality diesel engine oil to ensure the normal operation of the machine. In addition to adding oil to the diesel engine, the fuel injection pump also needs to add special oil according to the designed lubrication, and the linked shared engine oil. Diesel pump is a kind of mechanical and electrical integration equipment which is directly driven by diesel engine and can start and realize water supply in a short time. Diesel pump is a high-tech product integrating microelectronics technology, digital technology, computer technology, information processing technology, industrial automation control technology, communication technology and mechanical technology.

What is a dual-purpose machine for power generation and electric welding, and what should be paid attention to when welding?

Power generation and electric welding dual-purpose machine | uses diesel engine or gasoline engine as power to rotate and generate electricity, and provides direct current for electric welding through rectifier module. Also called power generation welding dual-purpose machine, can be used as a generator, but also can be used as a welding machine. Advantages: integrated power generation and electric welding, light weight and convenient movement.
